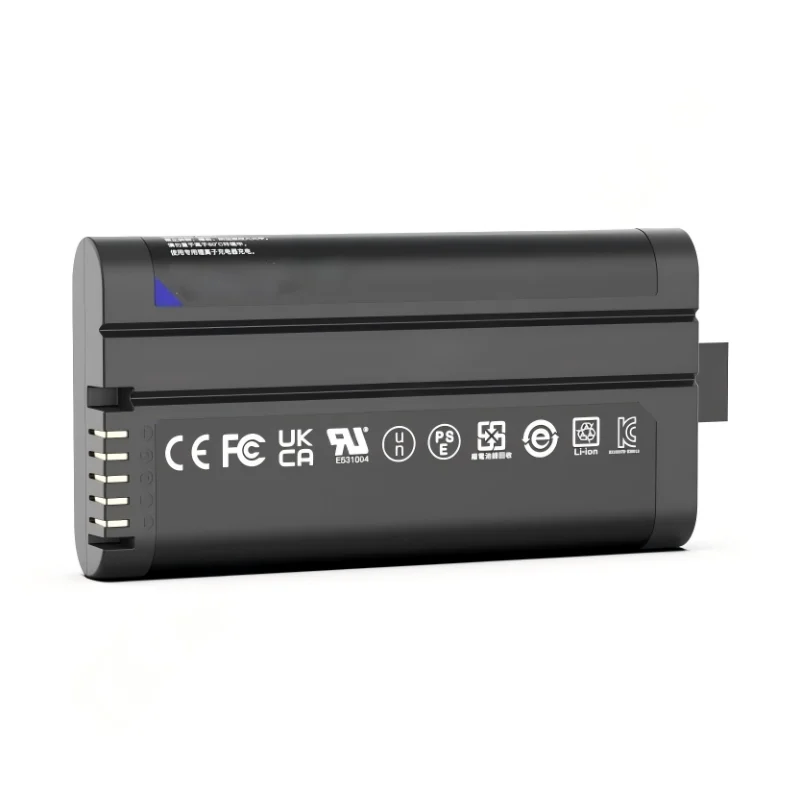

KYS2054HH Smart Battery 14,4V Lithium-Akku

The Smart Battery 14.4v Lithium Battery combines four lithium-ion cell groups inside a compact electrical enclosure. Engineers arrange the cells in a controlled sequence to maintain the required voltage level. An internal electronic board collects operating information from each cell channel. Meanwhile, communication terminals transfer measurement signals to connected equipment. Protective switching components interrupt current flow whenever irregular electrical conditions appear.

Cell Materials and Internal Composition

Manufacturers produce the cell structure using lithium-based cathode compounds and graphite anode materials. Aluminum foil supports positive current transmission, while copper foil handles negative electron collection. A separator membrane sits between electrode layers and prevents direct contact during operation. In addition, technicians install insulation sheets around conductive sections to reduce leakage risk. The external shell uses reinforced polymer and metal supports to maintain alignment during movement and vibration.

Assembly Procedure and Electrical Routing

Operators connect the lithium cells through nickel tab welding and form a four-series electrical arrangement. After cell grouping, technicians attach balance wires and sensing leads to each connection point. The integrated circuit board samples voltage and temperature values continuously. Furthermore, MOSFET switching devices regulate charging and discharging pathways according to preset thresholds. Cable anchors stabilize internal wiring and reduce stress on terminal joints during repeated handling.

Heat Distribution and Structural Arrangement

Thermal energy moves through spacing channels placed between adjacent cell rows. Conductive interface pads help distribute heat across the enclosure surface. Instead of using rotating cooling components, the structure relies on internal spacing and material conductivity for temperature control. The outer housing absorbs compression forces and protects the internal assembly from external impact. Access openings allow technicians to inspect terminal areas without removing the full enclosure.

Standards and Manufacturing Verification

Production follows IEC 62133 and UN38.3 requirements for lithium battery assemblies. Engineers perform insulation testing, voltage retention checks, and repeated charge-discharge evaluations on each batch. Serial identification codes support traceability during manufacturing and transport procedures. Packaging inspections confirm terminal isolation before shipment release.

Produktmerkmale

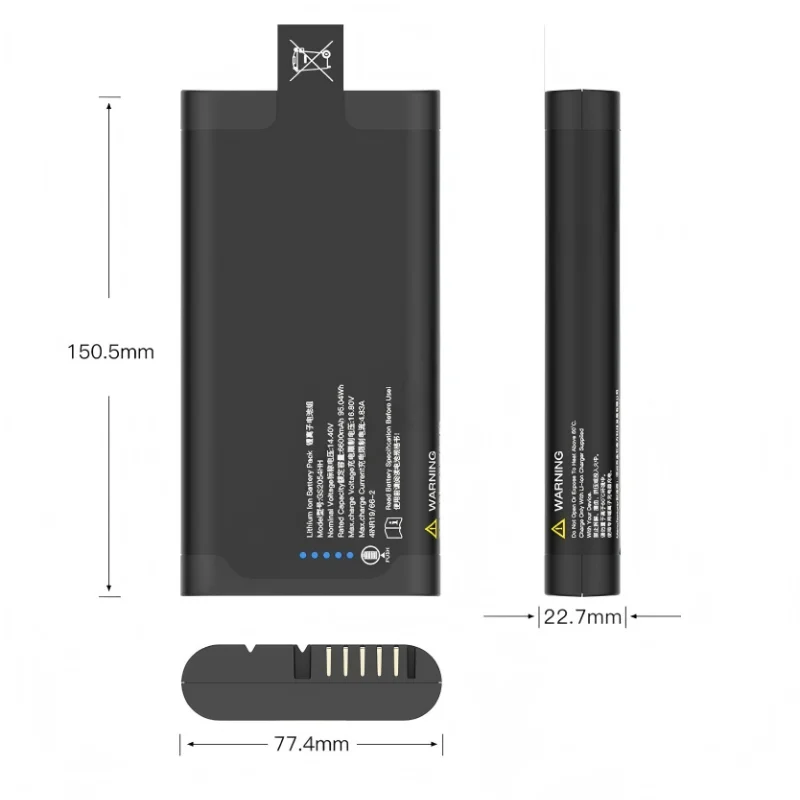

• 4S2P removable lithium-ion battery pack
• Entspricht Vorschriften in mehreren Regionen weltweit
• Standard-SMBus-v1.1-Schnittstelle
• Integrierte LED-Ladezustandsanzeige (SOC)
• Verwendet Panasonic-Zellen, die die höchste Energiedichte und Stabilität auf dem Markt aufweisen
• Erfüllt die JEITA-Regeln zur Gebührenoptimierung
• Umfassende Sicherheitsschutzmaßnahmen, darunter Überladung, Überentladung, Überstrom, Übertemperatur und Kurzschlussschutz
• Ausgestattet mit einer Ausgleichsfunktion, um die Akkulaufzeit effektiv zu verbessern
• TI precise power calculation

Produktanwendungsgebiete

• Medizinprodukte der Klasse III
• Präzisionsmessinstrumente
• Industriecomputer
• Zerstörungsfreie Prüfausrüstung
• Tragbare Industrie- und Medizingeräte usw.
