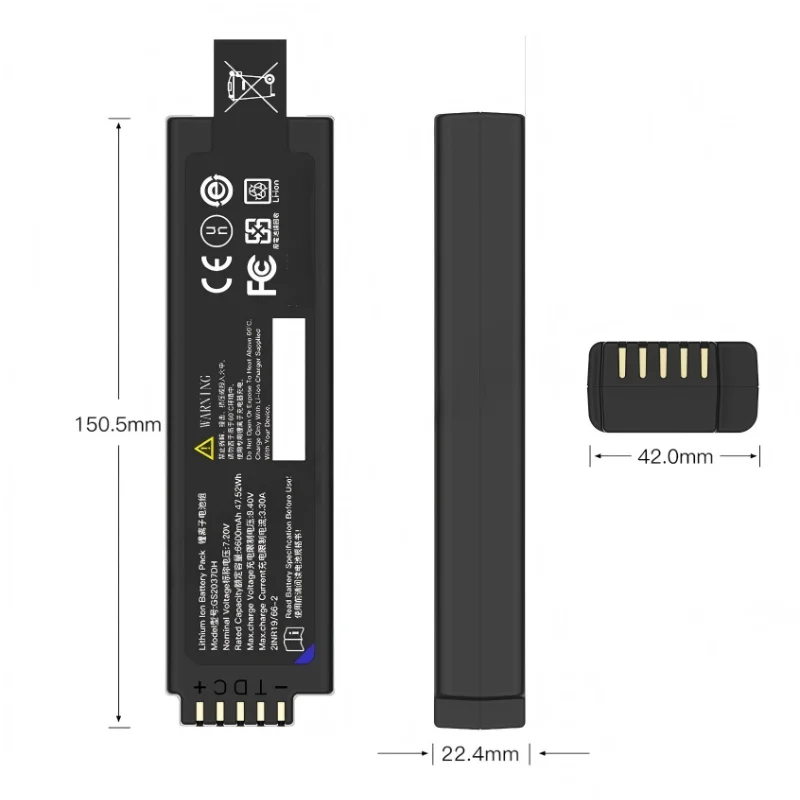

KYS2037DH Werkzeugloser Batteriewechsel

The Toolless Battery Replacement integrates a multi-cell lithium-ion structure with an embedded smart control system. Engineers assemble the pack using a series-parallel cell configuration to stabilize electrical output. The internal battery management system continuously monitors voltage, current, and temperature. Meanwhile, communication lines transmit status data through SMBus protocol for system-level coordination. Protective logic circuits respond to abnormal conditions in real time.

Materialien und Zellstruktur

Manufacturers select cylindrical lithium-ion cells based on consistent electrochemical properties. Cathode layers use lithium metal oxide compounds, while graphite forms the anode matrix. Copper foil collects electron flow on the negative side, and aluminum foil supports the positive electrode. A microporous separator allows ion transfer while blocking direct contact between electrodes. In addition, the enclosure uses reinforced polymer or aluminum housing to maintain structural integrity under mechanical stress.

Electrical Configuration and Control System

Technicians connect cells into controlled 2S or multi-string architectures depending on output requirements. Spot welding secures nickel tabs and reduces resistance at joint points. The battery management system performs real-time balancing across all cell groups. It also regulates charge and discharge limits through MOSFET switching control. Furthermore, firmware logic tracks cycle count and adjusts safety thresholds dynamically. Wiring harnesses include strain-relief structures to avoid disconnection during vibration.

Thermal Management and Mechanical Design

Designers integrate thermal pathways to distribute heat evenly across the pack. Air gaps and conductive plates guide temperature flow between modules. In some configurations, passive cooling structures assist heat dissipation without moving parts. The housing resists compression and isolates internal components from external shock. Service interfaces allow inspection and data reading without dismantling the pack.

Standards and Compliance

Production follows IEC 62133, UN38.3, and ISO-based safety frameworks. Each unit undergoes electrical endurance testing, insulation resistance verification, and thermal cycling validation. Manufacturers also apply traceability labeling for batch control. These procedures ensure consistent manufacturing quality and regulated transport certification across global supply chains.

Produktmerkmale

• 2S2P Removable Lithium-ion Battery Pack
• Entspricht Vorschriften in mehreren Regionen weltweit
• Standard-SMBus-v1.1-Schnittstelle
• Integrierte LED-Ladezustandsanzeige (SOC)
• Uses Panasonic cells, boasting the highest energy density and stability on the market, meeting JEITA charging optimization rules
• Umfassende Sicherheitsschutzmaßnahmen, darunter Überladung, Überentladung, Überstrom, Übertemperatur und Kurzschlussschutz
• Ausgestattet mit einer Ausgleichsfunktion, um die Akkulaufzeit effektiv zu verbessern
• TI Präzise Batterieberechnung

Produktanwendungsgebiete

• Medizinprodukte der Klasse III
• Präzisionsmessinstrumente
• Industriecomputer
• Zerstörungsfreie Prüfausrüstung
• Tragbare Industrie- und Medizingeräte usw.
